Ever wondered why excavators perform so efficiently? The secret lies in their bucket teeth. These teeth are crucial for digging and earthmoving tasks. In this post, you'll learn how to install them correctly for optimal performance. Proper installation ensures durability and enhances excavator efficiency.
Excavator bucket teeth come in various types, each designed to tackle specific ground conditions and materials. Choosing the right type is crucial for efficient digging and longer tooth life. Here’s a closer look at the three common types:

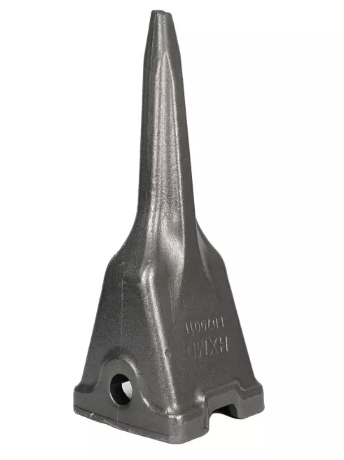

Rock teeth are built tough to handle the hardest materials, including iron ore, rock, and compacted soils. They feature a robust, blunt shape and are made from high-strength steel alloys resistant to abrasion and impact. This design ensures they last longer in harsh conditions, reducing downtime caused by frequent replacements. Mining and heavy construction projects benefit greatly from rock teeth’s durability.
Tiger teeth strike a balance between chisel and rock teeth. Their serrated edges and tapered profile provide good penetration in compacted soils and sticky clay. They offer better grip and digging efficiency in these challenging materials compared to chisel teeth. Tiger teeth are often chosen for mixed soil conditions where versatility matters.
Always match bucket teeth type to your specific ground conditions to maximize digging efficiency and extend the life of your equipment.
Proper preparation is key to installing bucket teeth safely and efficiently. Taking the time to gather tools, ensure safety, and assess risks sets the stage for a smooth process.
Before starting, collect all essential tools and materials:
● Hammer or mallet: For securing teeth and pins.
● Pin removal tool or punch: To loosen and remove retaining pins.
● Replacement bucket teeth and pins: Confirm compatibility with your excavator model.
● Wire brush or cloth: For cleaning bucket shanks.
● Safety gear: Gloves, safety glasses, steel-toe boots.
Having everything ready avoids interruptions and helps maintain focus on the task.
Safety equipment is your last line of defense during installation. Always wear:
● Protective gloves: Shield hands from sharp edges and pinching hazards.
● Safety glasses: Guard eyes from flying debris or accidental hammer strikes.
● Steel-toe boots: Protect feet from heavy falling objects.
Additionally, ensure the excavator is powered down and follows lockout/tagout procedures to prevent accidental startup. Position the bucket parallel to the ground and empty to avoid falling material risks. Use jack stands or wooden blocks to stabilize the bucket, preventing unexpected movement or crushing injuries.
Before touching tools, conduct a thorough risk assessment:
● Identify hazards: Crushing, pinching, impact from tools, musculoskeletal strain from lifting.
● Evaluate risk level: Consider environment, weather, equipment condition.
● Implement controls: Use mechanical aids for heavy teeth, maintain clear workspace, wear PPE.
Assess if the location is safe and free from distractions or hazards like other operating machinery, poor lighting, or slippery surfaces. Confirm you have the right tools and that the bucket is positioned for easy access. This preparation helps minimize accidents and ensures compliance with occupational health and safety standards.
Always perform a detailed risk assessment and prepare your workspace before installing bucket teeth to prevent injuries and ensure efficient work.
Removing old bucket teeth is a crucial step before installing new ones. This process ensures the bucket is ready and safe for the upgrade. Follow these steps carefully to avoid damage or injury.
Bucket teeth are usually held in place by retaining pins. These pins secure the teeth to the bucket shanks and must be removed first. Use a pin removal tool or a punch to tap out the pins. Start by positioning the tool against the pin head and gently hammer it to loosen the pin. Sometimes pins get stuck due to dirt, rust, or wear. In such cases, apply penetrating oil and let it sit for a few minutes before trying again.
If the pin is stubborn, use a heavier hammer or mallet for a stronger impact. Always ensure you have enough space to swing safely, and wear protective gloves and safety glasses to guard against flying debris or accidental hits. Remove all pins from the bucket teeth before attempting to detach the teeth themselves.
Once the pins and old teeth are removed, clean the bucket shanks thoroughly. Dirt, rust, and debris can accumulate, preventing a snug fit for the new teeth. Use a wire brush or a clean cloth to remove all residues. Inspect the shanks for any remaining pin fragments or corrosion and clear them out.
A clean shank surface ensures the new teeth fit tightly and reduces wear caused by movement or vibration. This step also helps you spot any hidden damage that might affect the bucket’s performance.
After cleaning, inspect the bucket shanks and adaptors carefully. Look for cracks, bends, or excessive wear on the shanks and the base where the teeth attach. Damage here can compromise the strength and effectiveness of your bucket.
If you find any damage, consider repairing or replacing the affected parts before installing new teeth. Installing new teeth on damaged shanks could lead to premature failure or unsafe operation. Also, check the pins themselves for bending or wear; replace any pins that appear compromised.
Proper installation of new bucket teeth is essential for maintaining your excavator’s digging efficiency and preventing premature wear or damage. Follow these detailed steps to ensure a secure and accurate fit.
Start by sliding each new tooth onto the clean bucket shank. It’s important to align the tooth so the mounting holes on the tooth and shank match perfectly. Misalignment can cause uneven wear or cause the tooth to loosen during operation. Take your time to ensure each tooth sits flush against the shank without gaps or tilts.
If your bucket teeth system includes a retainer or locking mechanism, position that component first as required by your specific model. For example, some systems require inserting the retainer into a recess on the adaptor before placing the tooth.
Once the tooth is properly positioned, insert the retaining pin through the aligned holes. The pin secures the tooth to the shank and prevents it from slipping off during digging. Depending on your bucket type, the pin may be a roll pin, locking pin, or bolt.
Push the pin in manually as far as possible. Then, use a hammer or mallet to tap the pin fully into place. Ensure the pin is flush with the tooth surface and locks securely. Avoid hitting the pin too hard, which can damage the pin or tooth. If the pin has a specific orientation (such as a roll pin with a split), make sure it’s installed correctly.
After securing the pin, give the tooth a gentle shake to confirm it is firmly attached and does not wiggle. Check that the tooth aligns evenly with adjacent teeth and the bucket edge. Proper alignment ensures even wear and optimal digging performance.
Repeat this process for each tooth on the bucket. If you notice any resistance or misfit during installation, stop and inspect the shank and tooth for dirt, damage, or deformation. Clean or replace parts as necessary before continuing.
After installing new bucket teeth, testing and inspection are crucial to ensure they function correctly and safely. This step helps catch any issues early, preventing downtime or damage during operation.
Start by visually examining each tooth and its attachment:
● Check pin seating: Ensure all retaining pins are fully inserted and flush with the tooth surface. Pins sticking out can loosen during digging.
● Confirm alignment: Teeth should line up evenly along the bucket edge. Misaligned teeth cause uneven wear and reduce digging efficiency.
● Verify fit: Teeth must fit snugly on the shanks without wobbling. A loose fit leads to premature wear or tooth loss.
● Inspect for damage: Look for cracks, bends, or deformities in the teeth or pins that might have occurred during installation.
Use a flashlight if needed to see tight spots clearly. If you spot any problems, address them before testing the excavator.
Once the visual check passes, test the bucket teeth under light operational conditions:
● Start gently: Dig into soft soil or sand first to avoid stressing new teeth.
● Observe movement: Watch for any tooth shifting, pin loosening, or unusual noises.
● Check digging efficiency: The bucket should penetrate the ground smoothly without excessive resistance.
● Feel for vibrations: Excess vibration can indicate poor fit or alignment.
If the teeth hold firm and the bucket performs well, gradually increase workload. Avoid heavy digging immediately after installation to allow parts to settle.
If issues arise during inspection or testing, take these actions:
● Re-seat pins: Tap pins firmly back into place or replace bent pins.
● Adjust alignment: Remove and reposition teeth if they are misaligned.
● Clean surfaces: Dirt or debris can prevent proper fit; clean and reinstall teeth.
● Replace damaged parts: Don't use cracked or bent teeth or pins; install new ones.
Never operate with faulty teeth as it risks equipment damage and safety hazards. If unsure about an issue, consult a professional technician.
Tip: Always perform a thorough inspection and light operational testing after installing bucket teeth to ensure safety and maximize digging performance.
When installing bucket teeth, safety must be your top priority. The process involves heavy parts, sharp edges, and tools that can cause injury if handled improperly. Following best practices and using proper safety gear helps prevent accidents and ensures the job goes smoothly.
Always wear the correct PPE before starting. This includes:
● Gloves: Protect your hands from cuts, pinches, and abrasions caused by sharp teeth and pins.
● Safety glasses: Guard your eyes from flying debris, especially when hammering pins or removing old teeth.
● Steel-toe boots: Shield your feet from heavy parts that might drop.
● Long sleeves and pants: Reduce skin exposure to sharp edges and accidental scrapes.
Proper PPE acts as your last line of defense against injuries.
Before working on the bucket teeth, ensure the excavator is completely powered down. Follow lockout/tagout procedures to prevent accidental startup:
● Turn off the machine and remove the ignition key.
● Attach a lock or tag indicating maintenance is underway.
● If a lockout device isn’t available, tape over the ignition switch and place a clear warning sign on the dashboard.
● Consider assigning a dedicated lockout person to monitor safety during the job.
Lockout procedures eliminate the risk of the machine moving unexpectedly, which could cause crushing injuries.
Be aware of typical hazards and take steps to avoid them:
● Crushing and pinching: Keep hands and fingers clear when positioning teeth or pins. Use tools or mechanical aids for heavy parts.
● Impact injuries: When using hammers or mallets, ensure you have enough space to swing safely. Avoid overstriking to prevent metal shards or tool damage.
● Muscle strain: Use team lifts or mechanical aids to handle heavy teeth. Avoid awkward postures or lifting beyond your capacity.
● Slips and trips: Maintain a clean, organized workspace free of debris, oil, or water.
● Weather conditions: Avoid installing teeth in high winds, rain, or poor lighting that can increase risks.
Preparing your workspace and staying alert helps prevent accidents.
● Position the bucket parallel to the ground and empty to avoid falling material.
● Stabilize the bucket using jack stands or wooden blocks to prevent sudden movements.
● Inspect tools before use to ensure they are in good condition.
● Follow manufacturer instructions for your specific bucket teeth system.
● Never rush the job; take your time to ensure safety and quality.
Understanding the different types of excavator bucket teeth is crucial for efficient digging and extended equipment life. Regular maintenance, such as proper installation and inspection, ensures optimal performance and safety. Following guidelines for safety and installation minimizes risks and enhances productivity. Gold Forging offers high-quality bucket teeth designed for durability and performance, providing exceptional value to operators in various industries.
A: Excavator bucket teeth are used for digging and penetrating various ground materials efficiently. They enhance the excavator's performance by providing better grip and reducing wear on the machine.
A: To install new excavator bucket teeth, position the teeth correctly on the shank, insert retaining pins, and ensure proper alignment for optimal performance. Follow safety measures and manufacturer instructions for a secure installation.
A: Choosing the right type of excavator bucket teeth is crucial for efficient digging and prolonged tooth life. Different teeth types are designed for specific ground conditions, ensuring optimal performance and reducing wear.
A: If excavator bucket teeth are misaligned, remove and reposition them, ensuring they fit snugly on the shanks. Check for dirt or debris that might affect alignment and clean or replace parts as necessary.
A: The cost to replace excavator bucket teeth varies based on tooth type, quality, and supplier. Prices can range from $20 to $100 per tooth, depending on the specific requirements and material durability.
