Crawler excavators depend on a complete undercarriage system to maintain stability, mobility, and working efficiency. Among the many components in the undercarriage structure, track rollers and carrier rollers are two parts that are often confused because both support the crawler track system.
Although they work together, track rollers and carrier rollers have different positions, functions, and operating conditions. Understanding the difference between an excavator track roller and an excavator carrier roller helps equipment owners identify wear problems earlier and choose the correct replacement parts.
Gold Forging supplies reliable excavator undercarriage parts designed for construction, mining, and heavy-duty applications. This guide explains the difference between track rollers and carrier rollers, common failure signs, and how to select suitable replacement components.

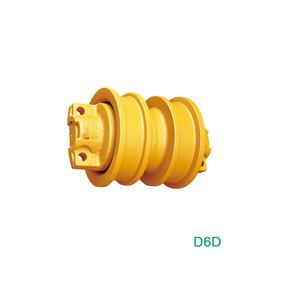

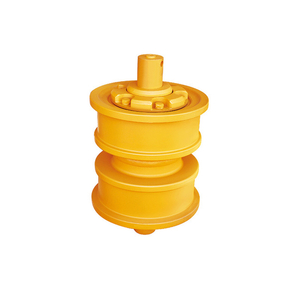

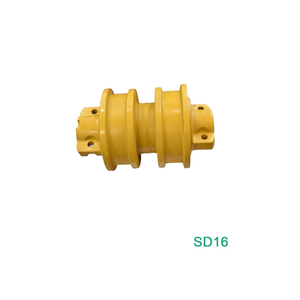

A track roller, also known as a bottom roller, is one of the main load-bearing components located underneath the excavator track frame.
The primary function of a track roller is to support the weight of the excavator and transfer machine loads through the track chain to the ground. Because track rollers directly carry the machine’s operating weight, they experience significant pressure during digging, traveling, and turning operations.
During excavation work, the lower rollers continuously contact the track chain while the machine moves across different surfaces. In applications involving rocks, mud, or uneven terrain, the impact forces on track rollers can become extremely high.
A high-quality excavator track roller needs to maintain proper sealing, strength, and wear resistance. Internal components such as the roller shell, shaft, and oil seal system must work together to prevent premature failure.
When a track roller becomes worn or damaged, the excavator may experience reduced travel stability, abnormal vibration, and increased stress on other undercarriage components.
For this reason, track rollers are usually inspected regularly as part of routine excavator maintenance.
A carrier roller, also called a top roller, is positioned on the upper section of the excavator track frame. Unlike track rollers, carrier rollers do not carry the full weight of the machine.
The main purpose of a carrier roller is to support the upper section of the track chain and help maintain correct track movement and alignment.
During operation, the carrier roller guides the returning track chain as it moves around the undercarriage system. Although the load on a carrier roller is generally lower than a track roller, it still plays an important role in maintaining smooth crawler movement.
A damaged carrier roller may cause the track chain to move unevenly, increasing vibration and affecting the overall stability of the crawler system.
Because carrier rollers operate in exposed environments, they must also withstand contamination from dirt, mud, and abrasive materials.
Although both components belong to the excavator undercarriage system, track rollers and carrier rollers serve different purposes.
The main differences are related to their location, load conditions, and wear characteristics.
Feature | Track Roller | Carrier Roller |
Position | Lower track frame | Upper track frame |
Main load | Supports machine weight | Supports upper track chain |
Quantity | Usually more units | Usually fewer units |
Wear condition | Heavy wear due to ground contact | Moderate wear from track guidance |
The easiest way to understand the difference is to consider their positions. Track rollers are located below the track chain and directly support the excavator’s weight. Carrier rollers are installed above the track frame and mainly guide the upper movement of the track chain.
Because of these different working conditions, track rollers generally experience higher loads and faster wear compared with carrier rollers.
However, both components are essential for maintaining proper undercarriage performance. Ignoring carrier roller problems can eventually affect track alignment, while worn track rollers can increase stress throughout the entire crawler system.
Because track rollers carry most of the excavator’s weight, they are usually exposed to more severe operating stress than other roller components.
One common indication of track roller failure is oil leakage. A damaged seal system may allow lubricating oil to escape, reducing internal protection and increasing friction between moving parts.
Operators may also notice abnormal noise during travel. Grinding sounds, knocking, or unusual vibration can indicate internal wear or damage inside the roller assembly.
Uneven wear is another common problem. When a track roller surface becomes damaged or the internal structure fails, the roller may no longer maintain proper contact with the track chain. This can create uneven pressure distribution and accelerate wear of other undercarriage components.
In heavy-duty applications, early inspection is especially important because a damaged track roller can affect the performance of:
Track chains
Sprockets
Idlers
Adjacent rollers
Replacing a worn roller before severe damage occurs can help reduce overall maintenance costs.
Although carrier rollers operate under lower loads, they still require regular inspection because they directly affect track movement and alignment.
A common sign of carrier roller problems is excessive track vibration. When the carrier roller cannot guide the upper track chain correctly, the crawler system may become unstable during travel.
Another warning sign is chain instability. The track chain may appear loose or move unevenly because the upper support system is no longer functioning correctly.
Poor alignment can also indicate carrier roller wear. When the roller surface or internal components become damaged, the track chain may not maintain its normal position.
Compared with track rollers, carrier roller problems may be less obvious during early stages. However, ignoring these issues can increase stress on the entire undercarriage system.
The service life of excavator rollers depends heavily on operating conditions. Two machines with identical models may have completely different roller lifespans because of differences in working environments.
Excavators operating in mining areas often experience higher wear because of abrasive materials and heavy loads. Machines working in muddy environments may face additional sealing and contamination problems.
Rocky terrain can create strong impact forces that accelerate damage to rollers and other crawler excavator parts. In addition, machines with long daily working hours naturally experience faster component wear.
Regular inspection should consider:
Working environment
Operating hours
Machine weight
Maintenance schedule
Understanding these factors helps equipment owners determine whether roller replacement is necessary.
Excavator rollers should not always be considered separately. The undercarriage system works as a complete structure, and problems in one component can affect others.
During maintenance inspections, operators should evaluate related components together, including rollers, idlers, sprockets, and track chains.
For example, installing a new track roller on a severely worn track chain may reduce the expected service life of the new component. Similarly, damaged sprockets can create abnormal loading conditions that accelerate roller wear.
A complete undercarriage inspection provides a better understanding of machine condition and helps prevent repeated repair costs.
Choosing the correct excavator roller requires accurate machine information. Different excavator brands and models may use different roller dimensions, mounting structures, and specifications.
Before ordering replacement rollers, buyers should confirm the excavator brand, model number, and undercarriage configuration.
Providing accurate machine details helps suppliers recommend compatible components and reduces the risk of incorrect replacement orders.
For international buyers, this information is especially important because aftermarket undercarriage parts are often supplied for multiple equipment brands.
The quality of replacement rollers directly affects excavator operating performance and maintenance costs.
Reliable aftermarket undercarriage components should provide accurate dimensions, strong materials, and consistent manufacturing quality. Proper sealing, heat treatment, and machining accuracy all influence service life.
Gold Forging manufactures excavator undercarriage components designed for demanding working environments. The company provides solutions for contractors, distributors, and equipment owners who require dependable replacement parts.
Gold Forging supports customers with excavator wear parts and undercarriage solutions designed to maintain machine reliability and reduce unnecessary downtime.
Understanding the difference between track rollers and carrier rollers helps equipment owners make better maintenance decisions. Track rollers mainly support machine weight, while carrier rollers guide and support the upper track chain.
Choosing the correct replacement components requires consideration of machine model, operating environment, and overall undercarriage condition.
A track roller is located under the track frame and supports the excavator’s weight, while a carrier roller is located above the frame and supports the upper track chain.
Track rollers usually experience faster wear because they carry the machine’s weight and directly contact the track chain under heavy loads.
Oil leakage, abnormal noise, vibration, uneven wear, and poor track movement are common signs that a roller may require inspection or replacement.
In some cases, replacing a single damaged roller is possible. However, a complete undercarriage inspection is recommended to ensure other components are not causing accelerated wear.
