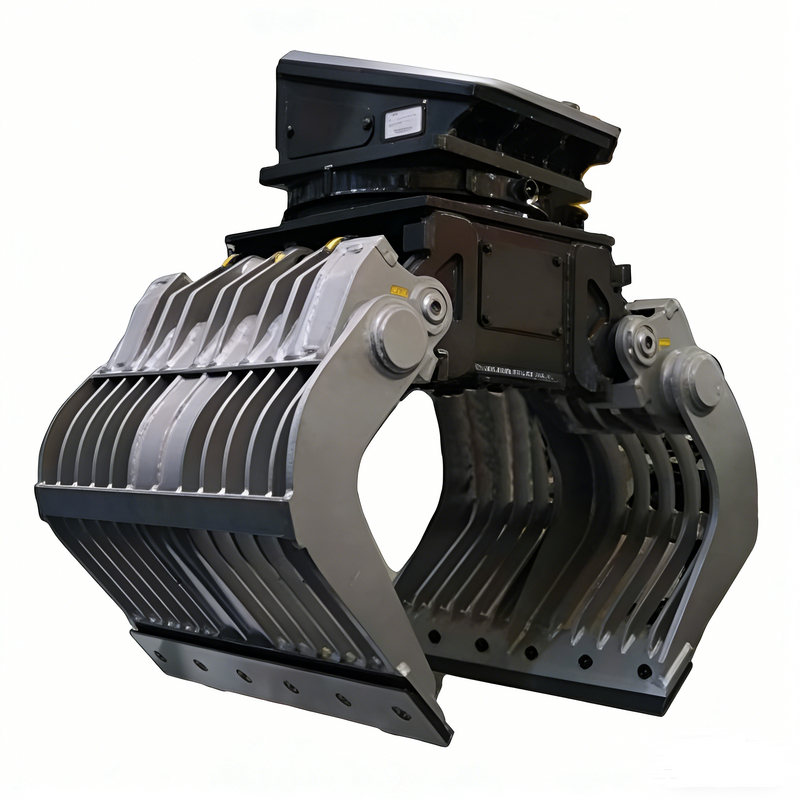

HXMD Hydraulic Sorting Grapple Feature
HXMD excavator sorting grab is built for efficient handling of stone, scrap, demolition debris, and other waste materials. Designed for strength, speed, and flexibility, it features heavy-duty jaws reinforced with durable Hardox 450 steel for maximum wear resistance and long service life.
The grapple includes interchangeable adapter mounting points for quick installation on different excavators and forestry machines. Compatible with standard forestry rotators, it can also operate as a free-hanging grapple for greater versatility.
Sorting grapple applications
Demolition and dismantling
Sorting and recycling operations
Stone handling and loading
Scrap and metal handling
Construction and demolition waste processing
Biomass and energy waste handling
Timber and bulky material loading
General material handling in construction and recycling industries

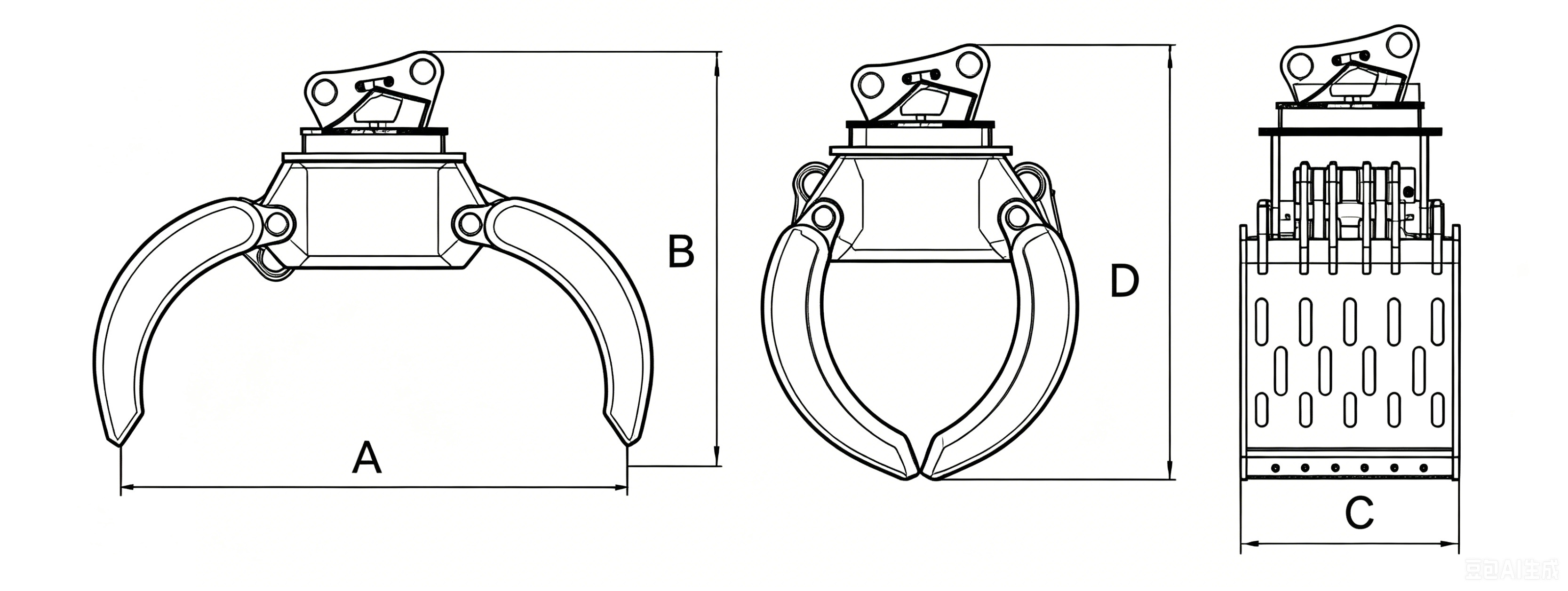

SORTING GRAPPLE SPECIFICATION
HXMD hydraulic sorting grapple is suitable for stone plants, scrap and waste recycling facilities, construction sites, and industrial or household waste stations. It is ideal for grabbing and loading loose, strip, and mixed materials.
Model | JD-04 | JD-06 | JD-08 |
Max opening size(mm) | 1500 | 1800 | 2000 |
Working Press(kg/cm2) | 120-150 | 150-170 | 160-180 |
Working Capacity | 0.6 | 0.6 | 0.8 |
Application Excavator | 4-8 | 8-12 | 12-20 |

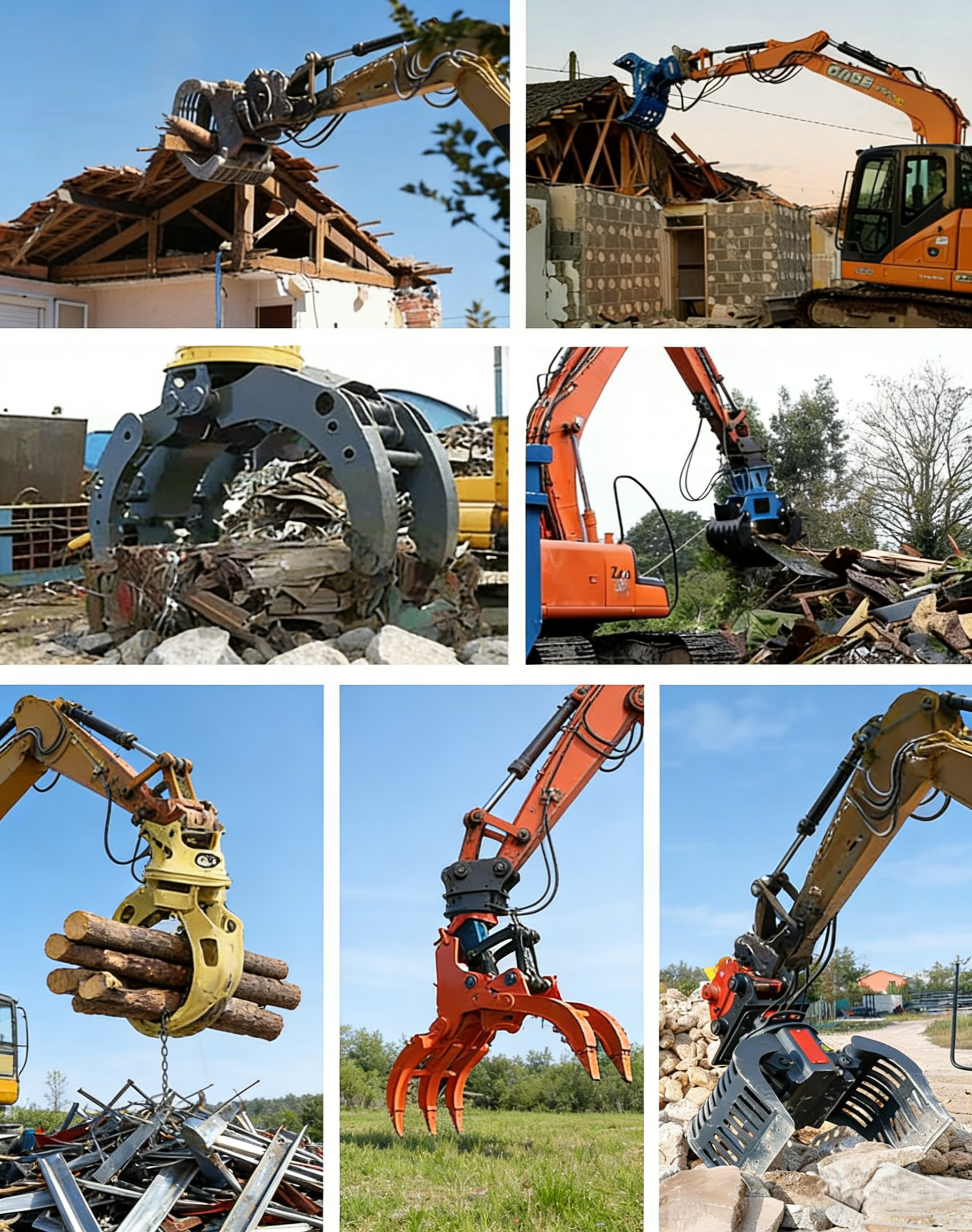

HXMD SORTING GRAPPLE APPLICATION
