Excavator bucket pins are essential components that connect the bucket, stick, and linkage system, allowing excavators to perform digging, lifting, and loading operations efficiently. Although bucket pins are relatively small compared with other excavator components, they carry significant loads and directly influence attachment stability.
Choosing the correct excavator bucket pin size is important when replacing worn parts. Incorrect dimensions can cause excessive movement, poor alignment, and accelerated wear of connected components. Gold Forging provides reliable excavator wear parts, including bucket pins, bushings, and other replacement excavator parts for construction, mining, and heavy equipment applications.
This guide explains how to measure excavator bucket pins correctly, how to match pins with bushings, and how to choose suitable replacement solutions for long-term equipment performance.

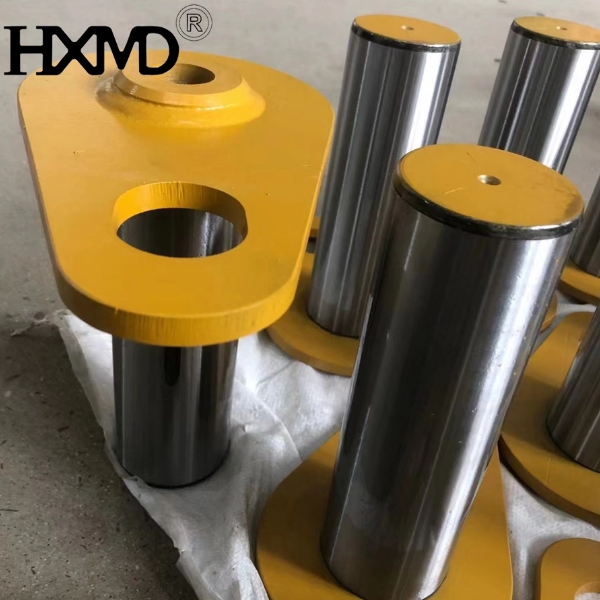

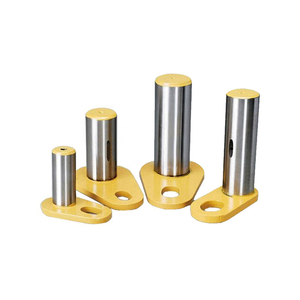

An excavator bucket pin is a high-strength steel component that creates a connection point between the bucket and the excavator working mechanism. It allows the bucket assembly to rotate smoothly while transferring the force generated by the hydraulic system.
During excavation operations, the bucket pin experiences continuous pressure from digging resistance, material loading, and repeated movement cycles. In demanding environments such as mining sites, quarry operations, and large construction projects, these forces become even more intense.
The bucket pin works together with other attachment components, especially bushings, to maintain proper alignment and reduce unnecessary movement. When the pin and bushing have the correct fit, the excavator can operate with improved stability and reduced component wear.
Because bucket pins operate under constant mechanical stress, selecting the correct dimensions is essential for maintaining reliable equipment performance.
The correct excavator bucket pin size is determined by more than appearance. Different excavator models may require different pin diameters, lengths, shoulder designs, and retaining systems.
A common mistake among equipment users is choosing a replacement pin based only on visual similarity. However, even small differences in dimensions can affect the entire attachment system.
For example, a pin with an incorrect diameter may create excessive clearance between the pin and bushing. This additional movement increases impact loads and accelerates wear. A pin with an incorrect length may not properly fit the attachment structure or retaining system.
The relationship between incorrect sizing and possible problems is shown below:
Incorrect Condition | Possible Result |
Incorrect pin diameter | Excessive clearance and unstable bucket movement |
Incorrect pin length | Installation difficulty and poor alignment |
Incorrect grease hole position | Reduced lubrication efficiency |
Incorrect retaining structure | Increased risk of pin movement |
For this reason, accurate measurement should always be completed before ordering an excavator bucket pin replacement.
The first step in identifying the correct excavator bucket pin is measuring the diameter. This measurement determines whether the pin can properly fit with the bucket bushing and attachment connection points.
Professional maintenance teams usually use digital calipers or micrometers to check the diameter. However, measurement accuracy depends on selecting the correct area of the existing pin.
Used bucket pins often develop uneven wear after long-term operation. The contact area between the pin and bushing may become smaller due to friction, meaning that measuring only the worn section could result in an inaccurate replacement size.
A more reliable method is measuring several points around the pin and comparing the results. If measurements vary significantly, the original pin may already have excessive wear and should not be used as the only reference.
When ordering replacement parts, buyers should combine actual measurements with excavator model information and supplier recommendations to confirm compatibility.
After checking the diameter, the next step is measuring the overall length of the excavator bucket pin. Length is equally important because the pin must correctly pass through the bucket, bushing, and linkage components.
Different excavators may use similar diameter pins but require different lengths due to variations in attachment structure. A pin that is too short may not engage correctly with the retaining system, while an oversized pin may interfere with surrounding components.
Important dimensions include:
Measurement | Purpose |
Pin diameter | Confirms shaft size compatibility |
Overall length | Ensures correct installation position |
Working length | Determines contact area with the bushing |
Shoulder length | Maintains correct attachment alignment |
Recording complete excavator pin dimensions helps suppliers identify suitable replacement parts more efficiently and reduces the risk of incorrect orders.
Although dimensions are the foundation of correct replacement selection, other design details should also be considered.
Many excavator bucket pins include grease holes or lubrication channels. These features allow grease to reach the contact surface between the pin and bushing, reducing friction and improving service life. If the grease hole position does not match the original design, lubrication performance may be affected.
The shoulder and collar design should also be checked because these areas control the position of the pin inside the attachment. Different machines may use different shoulder structures to maintain correct alignment.
The retaining system is another important factor. A replacement pin must match the original locking method to prevent movement during operation.
A suitable excavator bucket pin should match the complete attachment design rather than only the basic dimensions.

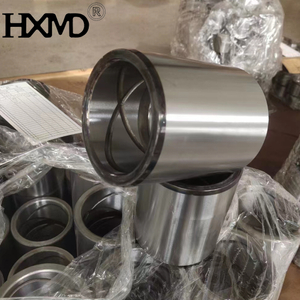

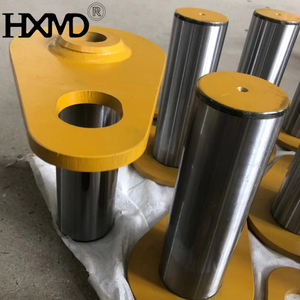

An excavator bucket pin does not work independently. It operates together with the bucket bushing as a complete wear system.

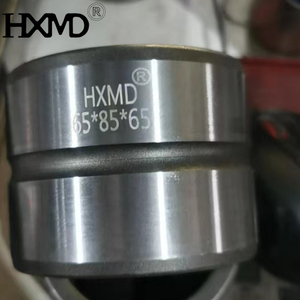

The bushing provides a replaceable wear surface between moving components. During operation, the pin rotates inside the bushing while carrying heavy loads. Over time, this repeated movement gradually increases clearance between the two components.
When selecting replacement components, buyers should consider both pin and bushing compatibility.
Component | Important Factors |
Excavator bucket pin | Diameter, length, shoulder design |
Bucket bushing | Inner diameter, outer diameter, length |
Attachment hole | Wear condition |
Retaining system | Locking compatibility |
Replacing only the pin while ignoring worn bushings may not solve attachment problems. A new pin installed into an oversized bushing can experience accelerated wear because of excessive movement.
For this reason, experienced equipment operators usually inspect both components together and replace them as a matched set when necessary.
Worn bucket bushings can affect excavator performance and increase maintenance costs. One of the most common signs is excessive movement between the bucket and arm.
Operators may notice that the bucket feels loose during digging operations or that the machine produces unusual knocking sounds when handling heavy loads.
Another indication is uneven wear around the connection area. When bushings lose their original tolerance, the attachment cannot maintain stable movement, which places additional stress on pins and surrounding components.
Excavators working in harsh environments require more frequent inspection. Mining, quarrying, and heavy construction applications typically create higher loads and faster wear compared with lighter applications.
Regular inspection of bucket pins and bushings helps prevent larger repairs and reduces unexpected downtime.
Excavator bucket pin sizes vary depending on machine class, manufacturer, and attachment design. Unlike some standardized components, there is no universal bucket pin size suitable for all excavators.
The following table provides a general reference:
Excavator Class | Typical Pin Size Range | Application |
Mini excavator | 30–50 mm | Landscaping and small construction |
Medium excavator | 50–90 mm | General earthmoving |
Large excavator | 90 mm+ | Mining and heavy-duty applications |
These values are only general references. The exact replacement part should always be confirmed according to the excavator model, attachment configuration, and original specifications.
The most reliable way to identify the correct excavator bucket pin replacement is confirming the machine model and original part information.
Equipment manufacturers often use different attachment designs even for machines with similar operating capacities. Providing accurate information helps suppliers recommend compatible parts and reduces ordering mistakes.
For distributors and repair companies, maintaining accurate part records also improves purchasing efficiency and reduces unnecessary replacement costs.
Excavator bucket pins operate under heavy mechanical loads, so manufacturing quality directly affects service life.
High-quality bucket pins are commonly produced using durable steel materials and controlled manufacturing processes. Forging technology improves structural strength and impact resistance, allowing the component to withstand repeated loading conditions.
Heat treatment further improves hardness and wear resistance, while precision machining ensures accurate dimensions and proper fitting with bushings.
For customers purchasing replacement excavator parts, selecting a manufacturer with reliable production capability is essential for long-term performance.
Gold Forging specializes in excavator wear parts and provides replacement solutions for construction and mining equipment users worldwide.
The company supplies products including bucket pins, bushings, bucket teeth, and other excavator components designed for demanding working environments.
With professional manufacturing experience and a focus on aftermarket compatibility, Gold Forging supports contractors, distributors, and equipment owners looking for reliable replacement solutions.
Choosing the correct excavator bucket pin size is essential for maintaining attachment performance and reducing unnecessary downtime. Accurate measurement of diameter, length, and bushing compatibility ensures proper installation and longer service life.
Gold Forging provides dependable excavator bucket pins, bushings, and replacement excavator parts for customers worldwide.
Measure the pin diameter, overall length, and working length using a digital caliper or micrometer. Always confirm the excavator model before ordering.
If the bushing is still within acceptable wear limits, replacing only the pin may be possible. However, worn bushings can shorten the service life of a new pin.
No. Excavator bucket pins are designed for specific machines and attachment systems. Compatibility should always be confirmed before purchase.
Provide the excavator brand, model, existing pin dimensions, and OEM information so the supplier can recommend the correct part.
