Excavator bucket teeth are designed to handle some of the most demanding working conditions in construction, mining, and earthmoving operations. However, the tooth itself is only one part of the complete wear system. The bucket tooth pin and retainer are equally important because they secure the tooth to the adapter and ensure stable performance during digging.
Selecting the correct bucket tooth pin and retainer requires more than matching the tooth appearance. The pin size, locking method, tooth system, and part number must all be compatible to prevent loose connections and premature wear.
Gold Forging supplies excavator bucket teeth, pins, retainers, and other bucket tooth replacement parts for global customers. This guide explains how to identify the correct bucket tooth pin and retainer combination and how to improve excavator attachment reliability through proper component selection.
A bucket tooth system is made up of several components that work together, including the bucket tooth, adapter, pin, and retainer. While the tooth is responsible for cutting and penetrating materials, the pin and retainer maintain the connection between the tooth and adapter.
During excavation, bucket teeth experience repeated impact forces caused by contact with soil, rocks, and other abrasive materials. Without a secure locking system, the tooth can move excessively on the adapter, increasing stress on the entire attachment.

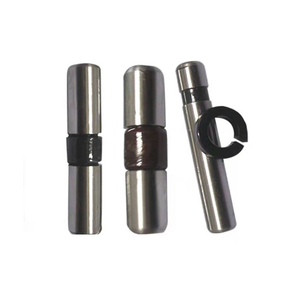

The excavator bucket tooth pin provides the mechanical connection between the tooth and adapter, while the retainer keeps the pin securely positioned. These two components must work together to maintain proper fitment.
For this reason, replacing a worn bucket tooth should not only focus on the tooth itself. The condition and compatibility of the pin and retainer directly influence the performance and service life of the complete tooth system.
Gold Forging provides matching bucket tooth pins and retainers designed for different excavator tooth systems, helping customers maintain reliable attachment performance.
Using an incorrect bucket tooth pin or retainer can create problems even when the tooth appears to fit correctly.
A pin with the wrong diameter may not properly lock the tooth onto the adapter, creating excessive movement during operation. Similarly, an incompatible retainer may fail to secure the pin, increasing the risk of tooth loss during excavation.
The following table shows common matching problems and their effects:
Problem | Result |
Wrong pin size | Loose tooth connection and increased movement |
Wrong retainer type | Tooth may detach during operation |
Poor material quality | Reduced durability and shorter service life |
Incorrect matching also increases wear on surrounding components. When the tooth moves abnormally, the adapter, pin hole, and retaining area experience additional impact.
For equipment owners and distributors, selecting compatible bucket tooth replacement parts helps reduce downtime and avoid repeated maintenance costs.
The first step in choosing the correct excavator bucket tooth pin is identifying the tooth system.
Different excavator manufacturers and tooth designs use different locking structures. Even within the same brand, different tooth series may require different pin and retainer combinations.
Common excavator tooth systems include Caterpillar J Series, Volvo systems, Komatsu systems, and other aftermarket-compatible designs.
For example, CAT J Series teeth use specific pin and retainer combinations based on tooth size. A smaller tooth system cannot use the same locking components as a larger heavy-duty tooth system because the dimensions and load requirements are different.
Before ordering replacement parts, buyers should confirm the tooth model rather than selecting components only according to excavator tonnage.
A correct match between tooth, pin, and retainer ensures better load distribution and improves service life during heavy excavation work.
Part numbers are one of the most reliable methods for identifying the correct bucket tooth pin and retainer.
For professional equipment users and replacement parts distributors, OEM part numbers provide a direct reference because they identify the exact component design and compatibility.
When available, buyers should compare the existing part number with supplier information before placing an order.
For example, CAT-style bucket tooth systems commonly use specific combinations of tooth numbers, pin numbers, and retainers. Matching these references helps prevent incorrect purchases and reduces installation problems.
However, part numbers are not always available, especially for older machines or aftermarket replacements. In these situations, measurement and tooth system identification become equally important.
When part numbers are unavailable, measuring the existing bucket tooth pin can help determine compatibility.
The measurement process should focus on the actual dimensions that affect installation. These include the pin diameter, overall length, and locking style.
Measurement | Purpose |
Pin diameter | Determines compatibility with tooth and adapter |
Pin length | Ensures correct positioning |
Locking style | Confirms retainer compatibility |
Accurate measurement is especially important when replacing aftermarket components because similar-looking pins may have different specifications.
A professional supplier can use these measurements together with tooth information to recommend the correct replacement solution.
Different excavator tooth systems use different locking designs. Understanding these differences helps buyers avoid incorrect combinations.
Tooth System | Pin Type | Retainer Type |
J Series | Horizontal pin | Rubber retainer |
Side Pin System | Side locking pin | Metal retainer |
Vertical Pin System | Vertical pin | Locking clip |
The retainer design is particularly important because it determines how securely the pin remains positioned during operation.
A replacement retainer must match the pin design and tooth system. Using an incorrect locking component may cause premature loosening, even when the tooth itself appears suitable.
The retainer is a small component, but its role in the tooth system is critical. When a retainer becomes damaged, worn, or incorrectly installed, it may no longer hold the pin securely.
Broken retainers often occur in applications with high impact loads or when incompatible components are combined.
Regular inspection during maintenance allows operators to identify damaged retainers before they result in tooth loss or adapter damage.
Loose bucket teeth are one of the most common signs of pin and retainer problems.
When the connection between the tooth and adapter becomes loose, the tooth experiences additional movement during digging. This movement increases impact forces and accelerates wear on the entire tooth system.
Operators may notice abnormal noise, reduced digging efficiency, or visible movement between the tooth and adapter.
Replacing worn pins and retainers together with damaged teeth often provides better long-term performance than replacing only one component.
Premature wear usually occurs when components are incorrectly matched or when low-quality replacement parts are used.
A properly designed bucket tooth system distributes excavation forces more evenly. However, poor compatibility can create concentrated stress points that reduce the service life of teeth, pins, and adapters.
Material quality also affects durability. High-quality pins and retainers manufactured with appropriate material selection and processing methods provide better resistance against impact and wear.
The correct tooth system is the foundation of long-term excavator performance.
Different applications require different tooth designs. Machines working in general construction may need different solutions compared with equipment operating in mining or highly abrasive environments.
Choosing a suitable tooth system ensures that the tooth shape, pin design, and adapter structure work together properly.
Bucket teeth, pins, and retainers are designed as a complete system. Replacing only one worn component may not restore the original connection performance.
For example, installing a new tooth with an old worn pin can create excessive clearance and reduce service life.
During maintenance, operators should inspect the complete tooth assembly and replace related components when necessary.
This approach improves reliability and reduces the frequency of repeated repairs.
Selecting a professional supplier helps ensure accurate fitment, consistent quality, and reliable replacement support.
Gold Forging specializes in excavator wear parts, including bucket teeth, bucket tooth pins, retainers, and other replacement components designed for construction and mining applications.
Gold Forging supports distributors, contractors, and equipment owners with aftermarket solutions designed for compatibility with different excavator tooth systems.
Matching the correct bucket tooth pin and retainer is essential for maintaining excavator performance and reducing unexpected downtime.
The right combination of tooth system, part number, dimensions, and locking design ensures that the bucket tooth remains securely attached during demanding excavation operations.
No. Bucket tooth pins are designed for specific tooth systems and adapter designs. The correct pin must match the tooth model and locking structure.
The correct retainer depends on the tooth system, pin design, and adapter type. Checking the original part number is usually the most reliable method.
Yes. Since they work as a locking system, replacing both components together helps maintain proper fitment and reliability.
Using the correct tooth system, maintaining proper installation, and replacing worn teeth, pins, and retainers together can significantly improve service life.
