Excavator bucket weight can be as low as 80 pounds for mini buckets. Some large heavy-duty buckets can weigh over 5,700 pounds. Each excavator bucket type has its own weight. This depends on its size, how much it can hold, and its design. Knowing the exact excavator bucket weight is important. It helps operators match the bucket to their machine’s lift limits. This stops overloading. Overloading can make the machine unstable or even tip over at work. Operators should always check the manufacturer’s specifications. They should also add the weight of attachments like bucket teeth or cutting edges. This helps them find the total lift weight for safe use.
Excavator bucket weights can be very different. Some mini buckets weigh only 80 pounds. Heavy-duty buckets can weigh over 5,700 pounds. Always check the exact weight before you use a bucket.You must match the bucket’s weight and size to your excavator’s lift limit. This keeps the machine stable. It also helps stop accidents or damage.Attachments like bucket teeth and cutting edges add more weight. Make sure to count them when you figure out the total load.Heavier buckets dig tough materials better. But they use more fuel and cannot reach as far. Lighter buckets save fuel but may wear out faster.Always follow the manufacturer’s guidelines and safety rules. This helps you pick the right bucket. It also keeps your work safe and efficient.
Excavator bucket weights are not always the same. The type, size, and design can make them heavier or lighter. Operators must know each bucket’s weight for safe use. The next parts show the usual weights for mini, standard, heavy-duty, and specialty buckets. These weights help people pick the right excavator bucket for their machine and job.
Note: Always look at the manufacturer's specifications for the exact weight of your excavator bucket. This includes any attachments like bucket teeth or cutting edges.

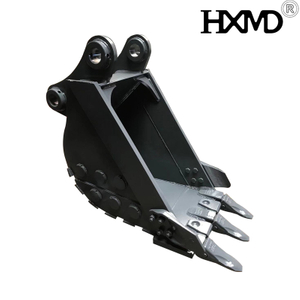

Mini buckets are made for compact excavators. They are light and simple to move. Most mini excavator buckets weigh from 80 to 1,100 pounds. The weight changes with the width, length, and extra features. For example, a 12-inch wide mini bucket can weigh about 425 pounds. A 24-inch model may weigh up to 1,085 pounds.
Model Size (W" x L") | Estimated Weight (lbs) |
|---|---|
12 x 32 | 425 |
16 x 32 | 475 |
18 x 40 | 620 |
20 x 42 | 933 |
24 x 42 | 1,085 |
Mini buckets are good for small digging jobs and tight spots. Their lighter weight means they need less hydraulic power. This makes them great for landscaping, utility work, and small building projects.
Standard buckets fit most medium-sized excavators. They balance weight and how much they can carry. Standard excavator bucket weights are usually between 300 and 1,000 kilograms (about 660 to 2,200 pounds). These buckets can move many things, like soil or gravel.
Bucket Type / Size | Weight Range (kg) | Excavator Size (tons) |
|---|---|---|
Small to Medium Buckets | 105 - 650 | 2 - 8 |
Medium to Large Buckets | 92 - 1,255 | 15 - 19 |
Standard buckets need the right hydraulic power and steady operation. Operators should always check the specs to make sure the bucket fits the excavator’s lifting power. Gold Forging has many standard buckets for different machines and jobs.
Heavy-duty buckets are made for hard work. They use stronger materials and thicker steel. These buckets are much heavier than standard ones. Most heavy-duty excavator buckets weigh from 1,000 to 2,500 kilograms (2,200 to 5,500 pounds). Some mining buckets can weigh even more if made with special alloys.
Bucket Type | Weight Range (kg) | Capacity Range (m³) |
|---|---|---|
Heavy-Duty Buckets | 1,000 - 2,500+ | 1.2 - 5.0 |
Heavy-duty buckets need more hydraulic power and sometimes extra counterweights for balance. Operators must think about moving these buckets because they are so heavy. These buckets last longer and can handle rough materials like rocks and debris. Gold Forging makes heavy-duty buckets that are strong and last a long time.
Specialty buckets are made for special jobs, like skeleton buckets, ripper buckets, and custom buckets. Their weights can be very different because of their job and extra features. Some specialty buckets can be 20-50% heavier than standard buckets of the same size because they have more reinforcements and safety parts.
For example, a skeleton bucket for sorting can weigh much more than a regular digging bucket. Ripper buckets, which break hard ground, are also heavier for extra strength. Gold Forging makes specialty buckets for special jobs, so you get the right mix of weight and performance.
Operators should always check the specs for each specialty bucket to make sure it works with their excavator.
Bucket Type | Typical Weight Range (lbs) |
|---|---|
Mini Buckets | 80 – 1,100 |
Standard Buckets | 660 – 2,200 |
Heavy-Duty Buckets | 2,200 – 5,700+ |
Specialty Buckets | Varies (often 20-50% heavier than standard) |
Excavator bucket weights can change with the maker, model, and any extra attachments. Gold Forging has many excavator buckets, bucket teeth, and cutting edges for different projects. Always check the specs before picking a bucket for your machine.
Excavator bucket size changes with the machine and job. Mini excavators use buckets from 6 to 24 inches wide. Standard machines use buckets that are 12 to 48 inches wide. Heavy-duty machines can use buckets up to 60 inches wide. Grading buckets are even wider. Some grading buckets for big excavators can be 84 inches wide. The table below shows common bucket widths for different excavator sizes:
Excavator Weight (tons) | Typical Bucket Width (inches) | Grading Bucket Width (inches) |
|---|---|---|
Less than 0.75 | 6 to 24 | 30 |
1 to 1.9 | 6 to 24 | 36 to 39 |
2 to 3.5 | 9 to 30 | 48 |
5 to 6 | 12 to 36 | 60 |
7 to 8 | 12 to 36 | 60 to 72 |
10 to 15 | 18 to 48 | 72 |
19 to 25 | 18 to 60 | 84 |
Mini buckets are best for small spaces and easy digging. Standard and heavy-duty buckets are for bigger jobs and harder materials. Gold Forging has many bucket sizes for different machines.
Excavator bucket capacity tells how much it can hold. Mini buckets usually measure in cubic yards or cubic feet. The width, length, and depth change the bucket’s volume. To find the bucket’s capacity, multiply length, width, and depth. If the bucket is a special shape, use the average width or length. Heavy-duty buckets might hold less because they use thicker steel.
Tip: Always check the specs for struck and heaped capacities. Struck means the material is level with the bucket edge. Heaped means the material is piled higher than the edge.
Material density and fill factor also change how much the bucket can carry. Wet clay is heavier than dry sand. Gold Forging gives clear specs for each bucket, so you can pick the right one.
Picking the right bucket size is important for safety and good work. The bucket must fit the excavator’s weight and power. If the bucket is too big, the machine can tip or get overloaded. If the bucket is too small, the job will take longer. Operators should check the machine’s lift limit and add the weight of the bucket, bucket teeth, and cutting edges.
Follow these steps to match the bucket to the machine:
Find the excavator’s lift limit in the specs.
Add the weight of the bucket and attachments.
Check the material’s density for the job.
Multiply the bucket’s capacity by the material’s density to get the total load.
Make sure the total load is not more than the machine’s lift limit.
A good match keeps the excavator safe and working well. Gold Forging has buckets, bucket teeth, and cutting edges for many machines and jobs.
The size and how much a bucket can hold are important for its weight. Bigger buckets need more steel to carry more dirt. This makes them heavier. The width, depth, and number of tooth stations also change the weight. Operators pick a bucket size based on the job and what the machine can lift. A bigger bucket moves more dirt but can make the excavator work harder.
Bucket capacity changes both the weight and how steady the machine is.
Wider and deeper buckets need thicker steel to stay strong.
Custom sizes for special jobs can weigh more because they use extra material.
Most buckets are made with strong steel alloys. Some buckets have wear-resistant materials like carbide to last longer. The type of material changes how heavy the bucket is. Heavy-duty buckets use thicker steel plates in places that wear out fast. This adds more weight. Engineers add extra support in key spots to stop damage.
Strong steel helps the bucket last longer but makes it heavier.
Wear-resistant materials like carbide help buckets last for tough jobs.
Advanced design tools, like computer simulations, help buckets stay strong but not too heavy.
Picking the right materials helps the bucket work well without making the machine too heavy. Gold Forging uses new designs and tests to make buckets that last and work well.
Extra parts and features also make a bucket heavier. Reinforced edges, wear plates, and heel plates add more steel. These parts can be 30-40% thicker than normal plates. Gussets and strong corners use special steel or tungsten carbide. These extras make the bucket heavier but help it last longer and work better.
Tip: Adding bucket teeth or cutting edges makes the bucket heavier. Always check the total weight before you start working.
Buckets with more features work better and last longer, especially for hard digging jobs. Gold Forging has many bucket teeth and cutting edges for different jobs.
The weight of a bucket affects how the excavator works. Heavy buckets help dig into hard ground like rock or packed soil. They give more force and keep the machine steady when digging. Heavy-duty buckets also help make digging more exact and stop bouncing. But, these buckets use more fuel because the machine works harder. They can use about 10-15% more fuel. Heavy buckets can also lower how far the machine can reach and lift. Lighter buckets save fuel and let the excavator reach farther. But, they may not last as long or dig well in tough ground. Operators pick different bucket weights for each job. This helps balance fuel use, digging power, and stability.
Heavy buckets give more digging force and keep the machine steady.
Heavy-duty buckets help with exact digging and less bouncing.
More weight means more fuel use and less reach.
Light buckets save fuel but may wear out faster.
Using a bucket that is too heavy can be dangerous. If the load is too much, the excavator might tip over. The operator could lose control. This can hurt people or even cause deaths. Too much weight also wears out the machine faster. This means more repairs and a shorter life for the excavator. Operators should always follow the lifting limits from the maker. This keeps everyone safe and protects the machine.
Safety Tip: Get good training, check loads often, and follow rules to stop accidents and keep the job site safe.
It is important to match the right bucket to the excavator. Makers say to check the bucket’s size and weight for the machine. Operators should measure pin diameter, pin centers, and dipper gap for a good fit. Using the wrong bucket can cause bad fits and loose parts. This makes both the bucket and machine wear out faster. Checking often and picking the right bucket helps stop breakdowns. It also keeps the excavator working well. Gold Forging has many buckets, bucket teeth, and cutting edges for different machines and jobs.
Picking the right bucket weight and size helps keep work safe and easy. Operators need to:
Make sure the bucket fits the machine’s lift limit and job.
Think about what material they will move and how fast the job must finish.
Use strong parts like bucket teeth and cutting edges for better work.
Check sizes often and follow rules to make sure everything fits and is safe.
Manufacturer rules help stop damage and keep everyone safe.
Operators can get more work done and lower risks by using these tips.
Operators should look at Gold Forging’s product specs. The website shows the weight for each bucket model. If you add bucket teeth or cutting edges, the bucket gets heavier.
Bucket weight changes how much the excavator can lift. If the bucket is too heavy, the machine may not be stable. It can also use more fuel. Gold Forging says to match the bucket weight to the machine’s lift limit.
Some attachments are bucket teeth, adapters, and cutting edges. These help with digging and make the bucket last longer. Each one adds more weight. Operators should count them when figuring out the total load.
Gold Forging can make custom buckets and attachments. Customers can ask for special sizes, shapes, or extra strong parts. The R&D team works with customers to fit their project needs.
Operators should think about the machine’s weight, the job, and what material they will move. Gold Forging has many buckets, bucket teeth, and cutting edges. Checking the maker’s rules helps you pick the best and safest bucket.
